ET Series Adjustable / Steerable Load Skates for Sale

PJM Industrial ET Series Load Skates

Professional Class Steerable Load Skates - ET Series

  • You can get smooth running on the ET Series load skates
  • The ET Series load skates are available in two (2) versions, being Type A & B
  • Type A are Steerable
  • Type B are laterally adjustable
  • Capacity 3 to 20 tinne.

Steerable Load Skakes: ET A Series Specifications

MODELET3AET6AET9AET12AET20A
Capacity (Tonne)3691220
Loading Height (mm)110110110110180
Roller Size (Dia.. x W)85x8585x8585x8585x85140x85
No. of Rollers48121616
Dia. Of 180 deg. Rotating pad mm)170170170170250
Demensions. (L x W x H)270 x 230610 x 520815 x 600990 x 6001090 x 730
Weight (kg)15455673188

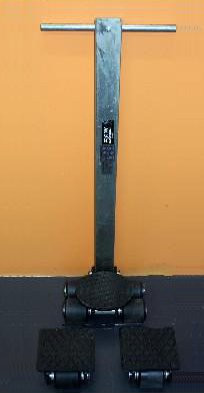

PJM Industrial ET3A & E3B Load Skates

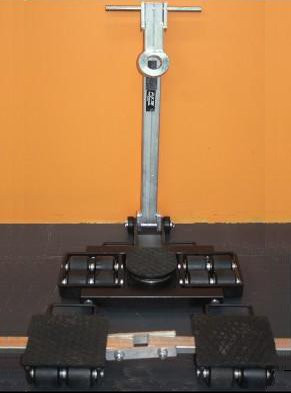

Steerable Load Skakes: ET B Series Specifications

ModelET3BET6BET9BET12BET20B
Capacity (Tonne)3691220
Loading Height (mm)110110110110180
Roller Size (Dia.. x W)85x8585x8585x8585x85140x85
No. of Rollers48121616
Demensions. (L x W x H)150 x 150200 x 220180 x 170200 x 220280 x 220
Weight (kg)1632344595
For more information, select the following product pdf: PJM Industrial Load Skates Kits ETA and ETB Series-1 PJM Industrial Load Skates Kits ETA and ETB Series-1 (335 KB)
