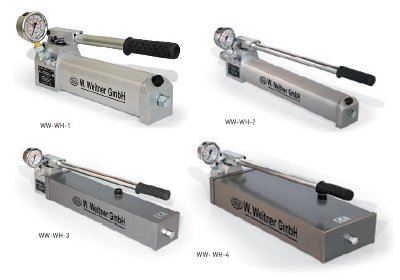

Double Speed Hydraulic Hand Pumps For Sale: Werner Weitner WW-WH
Double Speed Hydraulic Hand Pump Features
- Double speed operation
- Pump head and tank made of aluminium
- Compact and lightweight ergonomic design
- Internal pressure relief valve up to 700 bar max.
- 0-1000 Bar gauge Ǿ63 as standard available
These hydraulic hand pumps are adjusted on 700 bar, oil filled and ready to use.
Other pressure and tank sizes are available on request.
Werner Weitner Double Speed Hydraulic Hand Pumps Specifications
| Double speed hand pumps | WW-WH-1 | WW-WH-2 | WW-WH-3 | WW-WH-4 |
|---|---|---|---|---|
| Reservoir Capacity | 0.7 L | 1.3 L | 2.5 L | 4.8 L |
| Usable Oil Capacity | 0.5 L | 0.9 L | 1.8 L | 3.8 L |
| Oil Displacement per Stroke (Low pressure) | 7.2 cm³ | 17 cm³ | 17 cm³ | 17 cm³ |
| Oil Displacement per Stroke (High pressure) | 0.9 cm³ | 1.7 cm³ | 1.7 cm³ | 1.7 cm³ |
| Max. Handle Effort at 700 bar | 35 kg | 47 kg | 47 kg | 47 kg |
| Piston Stroke | 23 mm | 23 mm | 23 mm | 23 mm |
| Piston Diameter | 20/07 mm | 32/10 mm | 32/10 mm | 32/10 mm |
| Pressure rating (bar) | 20 / 700 | 20 / 700 | 20 / 700 | 20 / 700 |
| Connection Thread | 3/8" | 3/8" | 3/8" | 3/8" |
| Weight incl. oil | 4.3 kg | 5.3 kg | 7.5 kg | 10.5 kg |
| Sizes (LxWxH) | 353 x 150 x 171 mm | 564 x150 x 171 mm | 106 x 588 x 171 mm | 588 x 186 x 171 mm |
For more information please select the following Product PDF:
Werner Weitner Double Speed Hydraulic Hand Pumps (289 KB)
