Hydraulic Torque Wrench Pumps from Vanguard®
- 11.5 L/min (704 in³/min) at 700 bar (10,000 psi)
- Two-speed high performance pump
- External adjustable pressure regulator
- Retract side internal relief valve protects tool
- Hand remote
- Use for double or single acting tools
- Four-tool manifold (-4 model only) allows use of up to four tools simultaneously
CAUTION: This system should not be used for lifting applications.

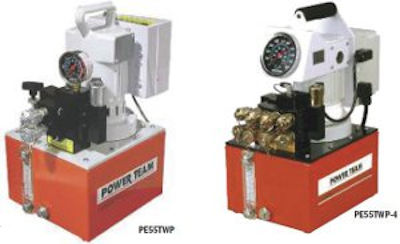

Electric Hydraulic Torque Wrench Pump Specifications
| Model | Electric Motor, 0.84 kW (1-1/8 hp), 12,000 rpm | Electrical Control |
|---|---|---|
| PE55TWP | 115V, 25 amps | Remote control with 6 m (20 ft) cord |
| PE55TWP-E110* | 110V/50Hz, 25 amps | Remote control with 6 m (20 ft) cord |
| PE55TWP-E220* | 220V/50Hz, 13 amps | Remote control with 6 m (20 ft) cord |
| Pump Model | Oil Delivery @ 0 bar (L/min) | Oil Delivery @ 700 bar (L/min) | Oil Reservoir (L) | Usable Oil (L) | Overall Width (mm) | Overall Length (mm) | Overall Height (mm) | Weight incl. Oil (kg) |
|---|---|---|---|---|---|---|---|---|
| PE55TWP PE55TWP-E110* PE55TWP-E220* | 11.5 | 0.9 | 9.5 | 8.6 | 435 | 241 | 460 | 34 |
| PE55TWP-4 PE55TWP-4-E110* PE55TWP-4-E220* | 11.5 | 0.9 | 9.5 | 8.6 | 470 | 241 | 486 | 35 |
* CE Approved – designed for 50Hz applications.
For more information select the following PDF:
PJM Industrial TWP55 Torque Wrench Pumps Product PDF (120 KB)
