Roller Skate Express - The Robusts (Models B, B-H and B-H-50CrV4) (Boerkey GmbH)

Home
Boerkey Roller Skate Express The Robusts

Boerkey GmbH, D-58089 Hagen, has been a producer of Roller Skates Express and Heavy Duty Wheels since 1951. PJM Industrial are distributors of the Boerkey Roller Skates in Australia.

Range of application:

  • For short distances.
  • If possible on suitable tracks, e.g. crane rails or steel beams.
  • Movement of heavy loads in mining, steel industry, mahine construction, bridge construction and other heavy industrial plants..
  • Use as a convevor, when the load is moving and the Roller Skates are fixed.
  • Low level construction overcomes problems in confined spaces

Characteristics of the series of model B:

  • Stable, solid base construction.
  • Low level is achieved by recessing trhe mounting plates into side walls. Models B and C are the same height.
  • More stability by firmly bolting the Skates to the load..
  • Available with hardened centre plate (Models B-H) or additionally with higher tensile roller material 50CrV4 (SAE 6150) (Models B-H-50CrV4).
Boerkey GmbH Roller Skate Express - The Robusts (Models B and B-H)

Roller Skate Express - The Robusts (Models B, B-H and B-H-50CrV4)

Model B, B-H (H= Hardened and mchined centre plate), B-H-50CrV4 (Roller material 50CrV4)

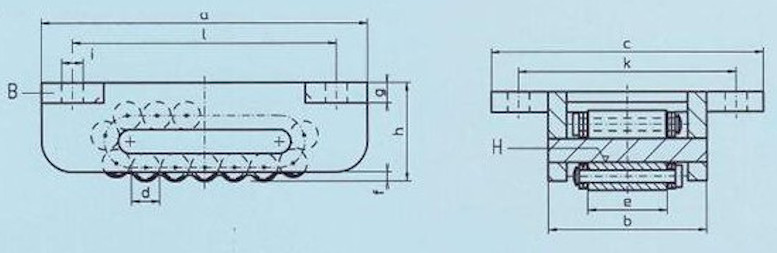

Boerkey GmbH Roller Skate Express - The Robusts (Models B, B-H and B-H-50CrV4) Schematic
Modelabc0defgh0iklRollers Under StressNumber of RollersMaximum Load kNWeight kg
I210100175185161363141401705151006.2
II2201131902460101473141551804131508.4
III27013021030681014901817522041330014.1
IV380168270427619191262222032041360036.5
V530182300508619191462224047061780066.4
For more information, select the following product pdf: Boerkey Roller Skate Express The Robusts (Models B, B H and B H 50CrV4) PDF Boerkey Roller Skate Express The Robusts (Models B, B H and B H 50CrV4) PDF (111 KB)
