Air Hydraulic Foot Pumps

Single Speed Air Hydraulic Pump Features

  • Single speed operation
  • Operating pressure up to 700 bar max
  • Lightweight due to aluminium material
  • Easy and multi purpose use, silent operation
  • 700 bar hydraulic output pressure with only 7 bar air pressure
  • 0-1000 bar gauge Ǿ63 as standard available (excpt WL-10)

Werner Weitner air hydraulic pumps or air hydraulic foot pumps can be used effectively in cases where high pressure is necessary and do not need much maintenance that means lower operating costs. The WL series air hydraulic foot pumps produce 700 bar hydraulic output with only 5 bar air input. WL air pumps or foot pumps can be used securely in several fields such as operating hydraulic cylinders, pullers, presses … and so on.

These air hydraulic pumps are controlled by a foot pedal. When the pedal is pressed from the back side of the air hydraulic foot pumps, the air engine starts to pump oil until you release the pedal to stop pumping. When the pedal is pressed from the front side, the pressure relief operation can be completed. For security conditions, WL series hydro-pneumatic pumps are equipped with a pressure relief valve just as other Werner Weitner pumps.

When the pressure reaches the adjusted value, excess oil is discharged to the tank to reduce risks. Air hydraulic pumps work more silently as compared to Electric Hydraulic Pumps or Gasoline / Petrol Hydraulic Pumps and can be used securely at any gaseous or flammable places.

WL pumps also can be used as double acting with the help of a control valve.

Werner Weitner Air Hydraulic Pumps | Air Hydraulic Foot Pumps

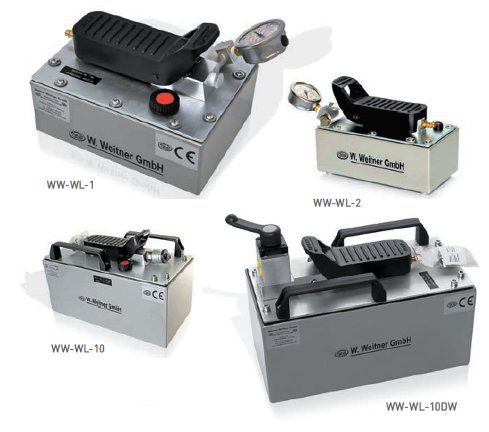

Werner Weitner Air Hydraulic Foot Pumps Specifications

Double speed foot pumps
WW-WL-1
WW-WL-2
WW-WL-10
WW-WL-10DW
Reservoir Capacity
2.6 Litres
1.5 Litres
12.0 Litres
12.0 Litres
Usable Oil Capacity
2.4 Litres
1.0 Litres
1.0 Litres
1.0 Litres
Flow Rate 50 / 700 bar
600 / 110 cm3
600 / 110 cm3
600 / 110 cm3
600 / 110 cm3
Compressed Air (min – max)
5-7 bar
5-7 bar
5-7 bar
5-7 bar
Air Consumption
250 Lt/min
250 Lt/min
250 Lt/min
250 Lt/min
Connection Thread (NPT)
3/8″
3/8″
3/8″
3/8″
Weight incl. oil
12 kg
10 kg
22 kg
22 kg
Sizes (LxWxH)
262 x 190 x 186 mm
260 x 140 x 186 mm
400 x 200 x 270 mm
400 x 200 x 270 mm

The pump is adjusted to 700 bar, filled with oil and ready to use.

Other pressure and tank sizes are available on request.

For more information please select the following Product PDF: Werner Weitner Air Hydraulic Foot Pumps Werner Weitner Air Hydraulic Foot Pumps (219 KB)
