Workshop Press: 10 Ton Floor or Bench H Frame Press For Sale
PJM Industrial are proud to be distributors of the SPX Power Team range of Hydraulic Workshop Presses & other products and can source any of the Power Team products.
10 Tonne H Frame Press Features
- The Power Team 10 Ton workshop press is ideal for small pressing jobs such as repairing small motors, armatures, removing and installing gears, bearings, other press-fit parts.

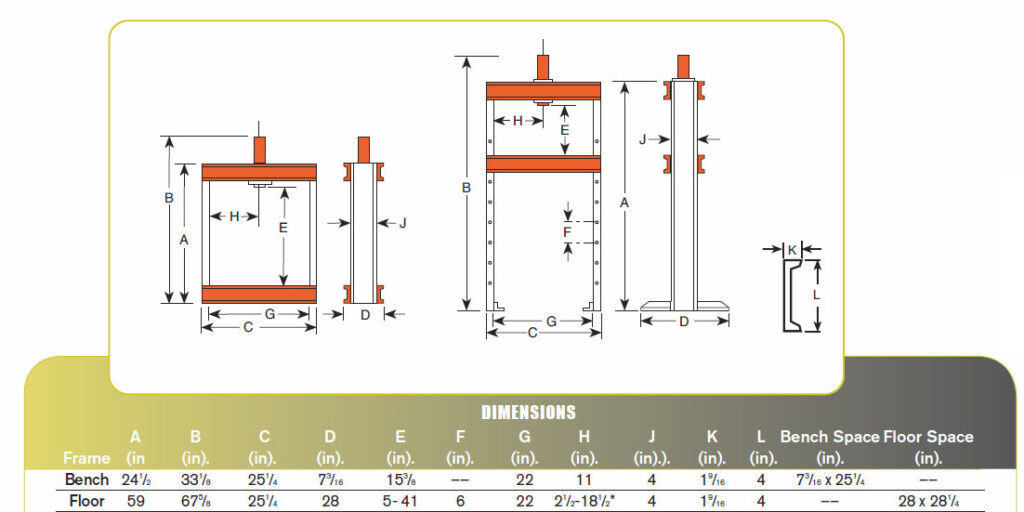

- The bench press has 153 /8” x 18” work area: floor press bed height is adjustable from 5” to 41” with horizontal “daylight” of 21”
- There is a choice of power sources:
- single-speed hand pump
- electric / hydraulic pump or
- air / hydraulic pump.
- Hydraulic gauges, hoses and fittings are included.
PUMP ELECTRICAL SPECIFICATIONS
PE10 Series – 1/4 hp, 115 volt, 60 cycle, single phase.
Also available in 230 volt, 50 cycle
(add suffix “-220” to order number).
H Frame Press Accessories
The SPX Power Team work shop press accessories available include:
Workshop Press Accessory Kit (135 KB)- Threaded Adapters (86 KB)
- “V” Blocks (86 KB)
10T H Frame Press Technical Data
| Order Number | Frame | Capacity (tons) | Type of Cylinder Used | Stroke (mm) | Cylinder Model | Speed-Advance (mm/min) † | Speed-Pressing (mm/min) † | Type Pump | Pump Model †† | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| SPM1010 | 222481 Bench | 10 | Single-Acting | 257 | C1010C | 1.5 mm/stroke | 1.5 mm/stroke | Hand | P55 | 41.3 |
| SPH1010 | 222480 Floor | 10 | Single-Acting | 257 | C1010C | 1.5 mm/stroke | 1.5 mm/stroke | Hand | P55 | 77.6 |
| SPE1010 | 222480 Floor | 10 | Single-Acting | 257 | C1010C | 55.7 | 5.1 | Electric ††† | PE102 | 79.4 |
| SP1010A | 222480 Floor | 10 | Single-Acting | 257 | C1010C | 93.7 | 7.6 | Air | PA9H | 73.5 |
| SPE1010D | 222480 Floor | 10 | Double-Acting | 254 | RD1010 | 55.7 | 5.1 | Electric ††† | PE104 | 87.1 |
† Typical performance based on 7 bar and 700 bar pump specifications. Actual speeds may vary with operating conditions.
†† Optional air/hydraulic pumps available on request.
††† “Advance” position holds pressure with motor shut off. “Return” position advances cylinder with motor running and returns cylinder with motor shut off.
†† Optional air/hydraulic pumps available on request.
††† “Advance” position holds pressure with motor shut off. “Return” position advances cylinder with motor running and returns cylinder with motor shut off.
H Frame Workshop Press Documents
For more information select from the following Product PDFs:- Power Team Workshop Press – H Frame – 10 Tons Bench / Floor Press Brochure (83 KB)
- Power Team Workshop Press Frames Operating Instructions (416 KB)
- Power Team Workshop Press Accessory Kit (135 KB)
- Power Team Workshop Press Accessories: V Blocks, Threaded Adapters & Rubber Tyre Set (86 KB)
- Power Team Cylinder Pump Sets (3235 KB)
- Power Team Electric / Battery Hydraulic Pumps PE10 Series (230 KB)
- Power Team Hydraulic Air Pumps PA9 Series (270 KB)
