Workshop Press: 55 Ton H Frame Press For Sale

PJM Industrial are proud to be distributors of the SPX Power Team range of Workshop Presses & other products and can source any of the Power Team products.

55 Tonne H Frame Press Features

  • Full off-center pressing at full rated capacity across the width of upper frame without buckling or bending.
  • Maximum ‘daylight’ is 42″ x 36″ (1.067 x 914 mm), making positioning of even bulky work pieces easy.
  • The height of the press bed is easily adjusted with the winch; a friction brake prevents the bed from dropping and
    handle from spinning upon release.
  • Presses with single-acting cylinder offer choice of
    • two-speed hydraulic hand pump
    • electric / hydraulic pump or
    • air / hydraulic pump.

    Models with double-acting cylinder have an electric / hydraulic pump.

  • Workshop press models equipped with the remote control enable an operator to view the work from all sides with fingertip
    control of cylinder piston travel.
Workshop Press 55 Ton H Frame Press For Sale. Workshop Press, H Frame Press.

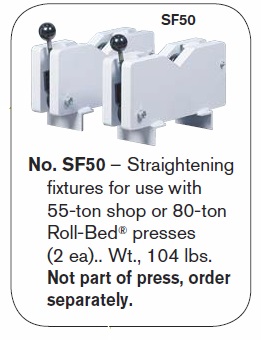

55 Ton H Frame Press Accessories

The SPX Power Team 55 ton H Frame workshop press accessories that are available include: Simply click on a link above for a PDF with more information about the specific accessory.

55 Ton H Frame Press Technical Data

Order Number
Capacity (Tons)
Type of Cylinder Used
Stroke (mm)
Cylinder Model
Speed-Advance (mm./min.) †
Speed-Pressing (mm./min.) †
Type Pump
Valve Pump
Pump Model ††
Weight (kg)
SPA556
55
Single-Acting
159
C556C
114
12.7
Air
2-Way Foot
PA6
318
SPM556
55
Single-Acting
159
C556C
5.8 mm./stroke
0.4 mm./stroke
Hand
Load-Release
P159
323
SPM5513
55
Single-Acting
337
C5513C
18.9 mm/stroke
0.7 mm/stroke
Hand
2-Way
P460
435
SPE556
55
Single-Acting
159
C556C
551
38
Electric
2-Way **
PE172
333
SPE5513
55
Single-Acting
337
C5513C
551
38
Electric
2-Way **
PE172
444
SPE5513S
55
Single-Acting
337
C5513C
620
48
Electric
3-Way *
PE213S
478
SPE5513D
55
Double-Acting
333
RD5513
551
38
Electric
4-Way
PE174
450
SPE5513DS
55
Double-Acting
333
RD5513
1.679
137
Electric
4-Way *
PQ604S
505

† Typical performance based on 7 bar and 700 bar pump specifications. Actual speeds may vary under operating conditions.
†† Pump standard with press. Other Power Team pumps can be substituted.
††† Holds pressure with motor shut off. Also has an automatic dump setting. Furnished with a 3.1 metre remote motor control.
*Solenoid valve with 24 volt remote control hand switch
**Holds pressure with motor shut of. Also has an automatic dump setting. Furnished with a 3.1 meter Remote motor control
