Double Acting Hollow Cylinder Bar Stressing Hydraulic Jacks For Sale

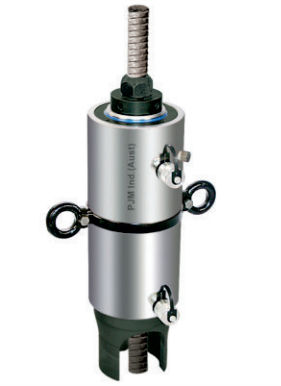

PJM Double Acting Hollow Cylinder Bar Stressing Jacks

Hollow Cylinder Bar Stressing Jacks Features

  • Capacity 50 – 400 ton
  • Stroke 50 – 500 mm

Hollow Cylinder Bar Stressing Jacks Applications

  • Used with high tensile threaded bars for pulling and locking.
  • Short strokes for lifting and aligning segments as well as fo temporary stressing.
  • Long strokes for pulling and locking multiple tendons of concrete structure.
  • The threaded bars are stressed as structural members too.
PJM Industrial Double Acting Hollow Cylinder Bar Stressing Hydraulic JacksDouble Acting Hollow Ram Bar Stressing Hydraulic Jacks For Sale

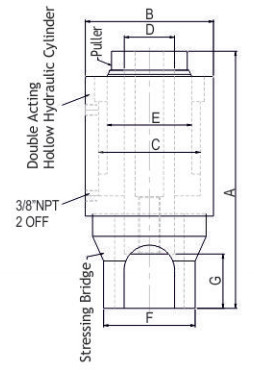

PBS Series Hydraulic Hollow Cylinder Bar Stressing Jacks Specifications

P = PJM Industrial, B = Bar, S = Stressing

Capacity
(ton)
Stroke
(mm)
ModelMacalloy BarEffecive Area
(cm2)
Oil Cap.
(cc)
Working Pressure
(kg/cm2)
Closed Height
(mm)
Cylinder Dia.
(mm)
Bore Dia.
(mm)
C'Hole Dia.
(mm)
Ram Dia.
(mm)
Stool Dia.
(mm)
Puller Height
(mm)
Wt. Approx.
(kg)
50100PBS 50-100-54FN25, 26.58080062643015012054901105548
100100PBS 100-100-81FN232, 36, 401561562641470215170811301609195
180100PBS 180-100-91FN40, 5028528506325152752209116020091170
330100PBS 300-100-130FN50, 755055050653570385300130220310120350

Higher capacity and customized solutions are available upon request.

Specifications are subject to change due to continual improvement.

For more information select the following Product PDF: PJM Industrial Double Acting Hollow Ram Bar Stressing Jacks PJM Industrial Double Acting Hollow Cylinder Bar Stressing Jacks (1821 KB)
