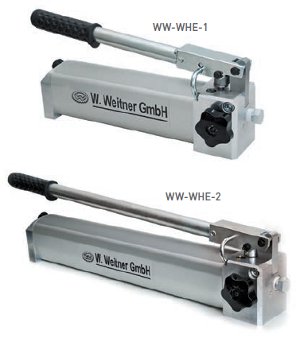

Single Speed Hydraulic Hand Pumps For Sale: Werner Weitner WHE
Features
- Single speed operation
- Compact and lightweight ergonomic design
- Pump head and tank made of aluminium
- Internal pressure relief valve up to 700 bar max.

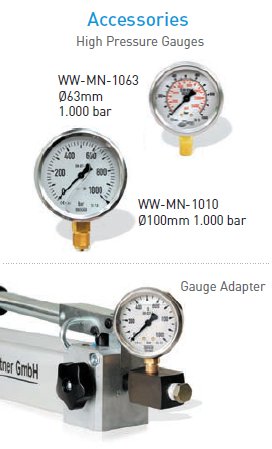

- 0-1000 bar Ǿ63 gauge optionally available
These hydraulic hand pumps are adjusted on 700 bar, oil filled and ready to use.
Other pressure and tank sizes are available on request.
Werner Weitner Single Speed Hydraulic Hand Pumps Specifications
| Single speed hand pumps | WW-WHE-1 | WW-WHE-2 |
|---|---|---|
| Reservoir Capacity | 700 cm³ | 1300 cm³ |
| Usable Oil Capacity | 500 cm³ | 900 cm³ |
| Pump Type | 1 speed | 1 speed |
| Oil Displacement per Stroke | 0.2 cm³ | 0.2 cm³ |
| Max. Handle Effort at 700 bar | 46 kg | 31 kg |
| Piston Stroke | 24 mm | 24 mm |
| Piston Diameter | 10 mm | 10 mm |
| Connection Thread | 3/8" NPT | 3/8" NPT |
| Weight | 4.3 kg | 5.3 kg |
| Sizes (LxWxH) | 353 x 150 x 171 mm | 564 x150 x 171 mm |
For more information please select the following Product PDF:
Werner Weitner Single Speed Hydraulic Hand Pumps (122 KB)
More Information?
If you require more information or have any questions regarding the Werner Weitner Single Speed Hydraulic Hand Pumps or any other Werner Weitner Hydraulic Pumps,
please feel free to call us on (+61 3) 9553 4882 or 0412 720 638, send us an email at
peter@pjmindustrial.com.au or use our Contact Form to submit an enquiry.
