Electric Hydraulic Power Packs (Werner Weitner WW-WAE Series)
Electric Power Pack Features
- Operation pressure max. 700 bar
- Double speed, double acting operation
- Max. security with pressure relief valve
- Single or double acting usage possible
- Pressure setting valve 50-700 bar standard
- Cable remote control for WAE-2 and WAE-4
- 0-1000 Bar gauge Ǿ63 as standard available
Electric Hydraulic Power Packs Product Selection Chart
| Models | WW-WAE-1 | WW-WAE-2 | WW-WAE-3 | WW-WAE-4 |
|---|---|---|---|---|
| Volts | 230 V | 230 V | 380 V | 380 V |
| RPM | 2850 | 2850 | 2850 | 2850 |
| kW | 2.2 | 2.2 | 1.5 | 1.5 |
| Flow Rate 100 bar / 1. stg | 4.8 L/min | 4.8 L/min | 4.8 L/min | 4.8 L/min |
| Flow Rate 700 bar / 2. stg | 1.0 L/min | 1.0 L/min | 1.0 L/min | 1.0 L/min |

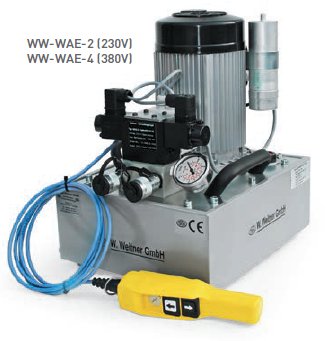

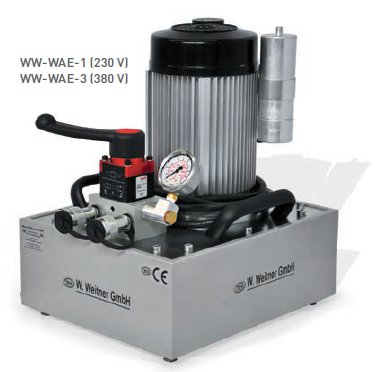

| Valve & Function | Hand Slide Valve | Directional Seated Valve | Hand Slide Valve | Directional Seated Valve |
| Weight | 50 kg | 50 kg | 50 kg | 50 kg |
Technical Data
| Feature | WW-WAE |
|---|---|
| Operation Pressure | 700 bar (10,150 psi) |
| Pressure Displacement | Double Speed Switchover at approx. 100 bar |
| Useable Oil Capacity | 12 L |
| Remote Control | Only for WAE-2 & WAE-4 |
| Size | 467 x 340 x 424 mm |
| Connection Thread | 2 x 3/8" NPT |
The electric power pack is adjusted to 700 bar & it is Oil filled and ready to use.
Other pressure and tank sizes are available on request.
