Heavy Duty Hand Operated Twin Diaphragm Grout Pumps: Kenrich GP-7

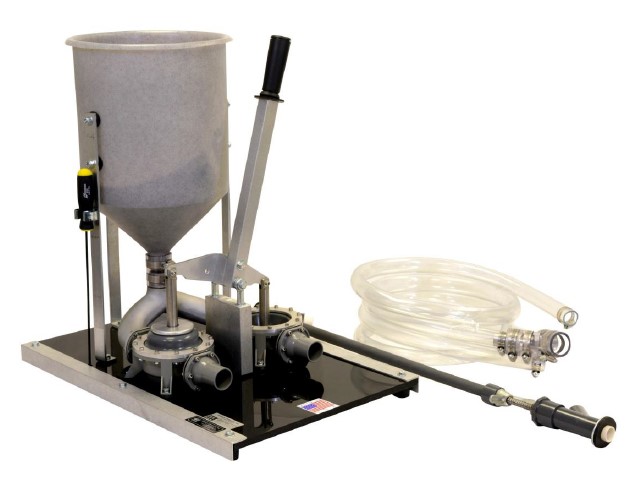

The Kenrich model GP-7 is a hand operated twin diaphragm grout pump. This model features two (2) separate pumps connected by an inlet manifold and two (2) outlet flanges. It is not suitable for use with chemical based epoxy grouts.

This model features two separate pumps connected by common inlet and outlet manifolds. Both pumps are powered by single pump handle.

The pumping action is achieved by moving the vertical pump handle back and forth (or up and down if the pump handle is in the optional horizontal position). When the pump handle is moved to the right, the grout mixture in the hopper is drawn into the left pump, while at the same time the grout mixture already in the right pump forced out into the placement hose where it is directed to the work area. When the handle is moved to the left, grout is drawn into the right pump while the grout in the left pump is forced out.

The GP-7 grout pump is a modified version of our GP-6 grout pump model. The outlet manifold (see item #6) has been replaced with two outlet flanges (p/n 5019-16). This change allows grout to flow through two separate 1” ID placement hoses attached to the adjustable hose support assembly. Now you can fill both sides of the door frame simultaneously.

Using existing holes in the frame (or creating two 1” minimum diameter holes on opposite sides) allows attachment of the twin hose support assembly. Moving the vertical handle operates both diaphragm pumps.

• Model: GP-7
• Pump Type: Twin Diaphragm, Self-Priming
• Power Source: Hand Operated
• Output Capacity*: 5 gallons per minute
• Output Pressure: Zero to 15 psi
• Hopper Capacity: .62 cubic foot (4.6 gallons)
• Placement Hose Size: 72in lg, 1 in Diameter, Clear Vinyl (X2)
• Discharge Head: 10 foot Vertical Lift
• Dimensions: 16 ½ ” x 25″ x 24″ high
• Net Weight: 32 pounds including hose

Applications

The model GP-7 Grout Pump is the perfect tool for filling hollow metal door frames. Now you can fill both sides of the frame at the same time.

Using existing holes in the frame (or creating two 1” minimum diameter holes on opposite sides) allows attachment of the twin hose support assembly. Moving the vertical handle operates two
diaphragm pumps simultaneously.

• Filling hollow concrete block walls
• Grouting metal door and window frames in place.
• Hollow areas under machine bed plates
• Filling voids
• Placing grout anywhere that high pressure is not required

The Kenrich Heavy Duty Grout Pumps are:

• Cementitious Grout Pumps – Pumps non shrink sand based cementitious grouts.
• Heavy Duty – Built for durability and long lasting performance.
• Hand Operated or Air Operated Perfect for every grouting application.
• Low Pressure – 15 psi max.- Ideal anywhere high pressure is not required.
• Lightweight and Portable- Take the pump to where you need the grout.
• Easy to Operate- Minimal maintenance required.
• Built with pride in the USA.
