Workshop Press: 25 Ton H Frame Open Throat Press For Sale
PJM Industrial are proud to be distributors of the SPX Power Team range of Hydraulic Workshop Presses & other products and can source any of the Power Team products.

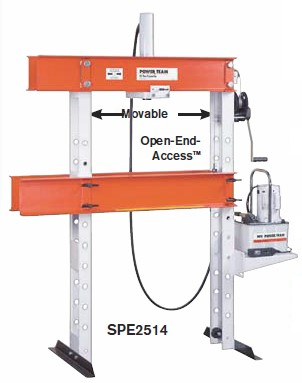

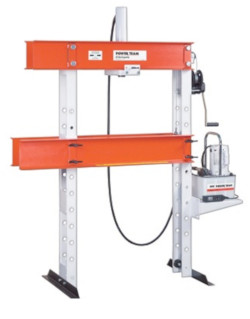

25 Tonne H Frame Open Throat Press Features

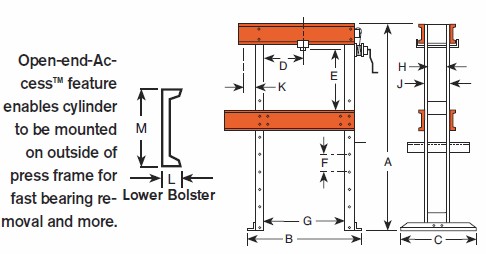

- The design permits the use as both “H” frame and “C” frame press; cylinder can be mounted on frame extension to handle jobs which won’t fit between uprights.
- Open-end-Access™ press models are also available with remote control to enable the operator to view work from all sides with fingertip control of cylinder piston travel.
- Off-center pressing loads of full capacity can be applied across entire width of frame.
- The press bed height is easily adjustable with the winch. The bed will not drop when handle is released.
- There is a choice of power sources for rapid cylinder advance:
- two-speed hydraulic hand pump
- electric / hydraulic pump or
- air / hydraulic pump.
25 Ton Economy H Frame Press Accessories
The SPX Power Team 25 ton economy work shop press accessories available include:
Workshop Press Accessory Kit (135 KB)- Rubber Tire Removing/Installing Set (86 KB)
- Threaded Adapters (86 KB)
- “V” Blocks (86 KB)
Simply click on a link above for a PDF with more information about the specific accessory.
25 Ton Open Throat H Frame Press Technical Data
| Order Number | Capacity (tons) | Type of Cylinder Used | Stroke (mm) | Cylinder Model | Speed-Advance (mm/min) † | Speed-Pressing (mm/min) † | Type Pump | Valve Pump | Pump Model †† | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| SPA2514 | 25 | Single-Acting | 362 | C2514C | 249 | 30 | Air | 2-Way Foot | PA6 | 310 |
| SPM2514 | 25 | Single-Acting | 362 | C2514C | 12.4 mm/stroke | 0.8 mm/stroke | Hand | Load-Release | P159 | 314 |
| SPE2514 | 25 | Single-Acting | 362 | C2514C | 1,184 | 84 | Electric | 2-Way ††† | PE172-E220 | 302 |
| SPE2514S | 25 | Single-Acting | 362 | C2514C | 1,321 | 102 | Electric | 3-Way * | PE172S-E220 | 344 |
| SPE2514DS | 25 | Double-Acting | 362 | RD2514 | 1,321 | 102 | Electric | 4-Way * | PE174-E220 | 357 |
† Typical performance based on 7 bar and 700 bar pump specifications. Actual speeds may vary under operating conditions.
†† Pump standard with press. Other Power Team pumps can be substituted.
††† Holds pressure with motor shut off. Also has an automatic dump setting. Furnished with a 3.1 metre remote motor control.
* Solenoid valve with 24 volt remote control hand switch.
25 Ton Open Throat H Frame Press Documents
For more information select from the following Product PDFs:
- Power Team Shop Press – H Frame – 25 Ton Open End Access Workshop Press Brochure (98 KB)
- Power Team Workshop Press Frames Operating Instructions (416 KB)
- Power Team Workshop Press Accessory Kit (135 KB)
- Power Team Workshop Press Accessories: V Blocks, Threaded Adapters & Rubber Tyre Set (86 KB)
- Power Team Cylinder Pump Sets (3235 KB)
- Power Team Electric / Battery Hydraulic Pumps PE17 Series (205 KB)
