Workshop Press: 100 Ton H Frame Press For Sale
PJM Industrial are proud to be distributors of the SPX Power Team range of Workshop Presses & other products and can source any of the Power Team products.
100 Tonne H Frame Press Features
This workshop press is great for many different applications. Can be used horizontally or vertically.
- Cylinder workhead glides across the upper frame on rollers, locks in place for off-center pressing jobs.
May be used horizontally for special pressing applications with usersupplied supports. - The press bed is raised and lowered by the winch which locks in place for insertion of bed retaining pins. The upper bolster can be lowered 8”
for convenient positioning on repetitive jobs. - Generous ‘daylight’ of 42” x 50” accommodates bulky work pieces, uprights are placed for easy side entry of bars or shafts for straightening or bending.
- Choice of single or double-acting cylinder.
- Hydraulic pump options include:
- 2-speed hand pump with large 2-gallon reservoir,
- PE172 electric / hydraulic pump or
- PQ series quiet electric / hydraulic pump with low noise level.

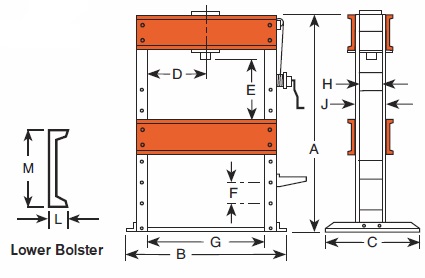

Power Team 100 Ton H-Frame Workshop Press Dimensions
On the RHS you will see a key for the dimensions of the 100 Ton H-Frame Workshop press for the dimensions table below.
100 Ton H Frame Press Accessories
The SPX Power Team 100 Ton H Frame workshop press accessories that are available include:
- Polyurethane Hoses
- Hydraulic Oil
On/Off Motor Controls (86 KB)- Workshop Press Accessory Kit (135 KB)
- Rubber Tire Removing/Installing Set (86 KB)
- Threaded Adapters (86 KB)
- “V” Blocks (86 KB)
Simply click on a link above for a PDF with more information about the specific accessory.
100 Ton H Frame Press Technical Data
| Order Number | Type of Cylinder Used | Stroke (mm) | Cylinder Model | Speed-Advance (mm/min) † | Speed-Pressing (mm/min) † | Type Pump | Valve Pump | Pump Model †† | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| SPM10010 | Single-Acting | 260 | C10010C | 9.0 mm/stroke | 0.3 mm/stroke | Hand | 3-Way | P460 | 770 |
| SPE10010 | Single-Acting | 260 | C10010C | 889 | 74 | Electric | 3-Way | PQ603 | 814 |
| SPE10010R | Single-Acting | 260 | C10010C | 292 | 20 | Electric | 2-Way | PE172 | 767 |
| SPE10013DS | Double-Acting | 333 | RD10013 | 889 | 147 | Electric | 4-Way * | PQ1204S | 855 |
† Typical performance based on 7 bar and 700 bar pump specifications. Actual speeds may vary under operating conditions.
†† Pump standard with press. Other Power Team pumps can be substituted.
*Solenoid valve with 24 volt remote control hand switch.
100 Ton H Frame Workshop Press Documents
For more information select from the following Product PDFs:- Power Team Workshop Press – H Frame – 100 Ton Workshop Press Brochure (93 KB)
- Power Team Workshop Press Frames Operating Instructions (416 KB)
- Power Team Workshop Press Accessory Kit (135 KB)
- Power Team Workshop Press Accessories: V Blocks, Threaded Adapters & Rubber Tyre Set (86 KB)
- Power Team Hydraulic Hand Pumps P Series (142 KB)
- Power Team Electric Hydraulic Pumps PQ60 Series (212 KB)
- Power Team Electric Pumps PQ120 Series (207 KB)
- Power Team Hydraulic Pumps Motor Controls (121 KB)
