Air Caster Roll Transporters For Sale

Aerofilm Air Caster Roll Transporters

Aerofilm Systems Air Caster Roll Transporters Overview

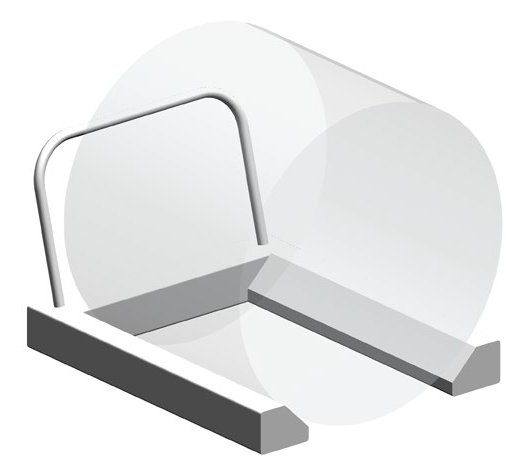

The internal movement of rolls is usually both cumbersome and labour-intensive. Paper/metal/plastic rolls, cable reels, coils, and other types of round objects, can be easily moved using roll transporters on air casters. The roll transporters are an excellent alternative to forklifts or overhead cranes. Also the wheels of cars, trucks etc. can be transported using roll transporters. The greatest benefit is that the roll transporter is hardly any larger in size than the roll that needs to be transported.

These roll transporter on air casters can be built to the client’s specifications and makes it possible to move very heavy rolls, irrespective of the material and size of the roll. The rolls can be placed directly on the roll transporter or, thanks to variable forks and integrated lift cushions, can be picked up directly from the floor.

They can be equipped with:

  • Air powered driven wheels; no more manual movement
  • Remote controls; to control the movement from a distance
  • Automated guidance systems; to create an Automatic Guided Vehicle (AGV)
  • Lift legs/tables; to provide an extra high lift
  • Master – Slave system; to enable cooperation between multiple vehicles
  • Adjustable forks: to pick up different diameters of rolls directly from the floor
  • On-board air supply; to make the vehicle self-sufficient
Aerofilm Systems Air Caster Roll Transporters For Sale

Air Caster Roll Transporters Properties

BUILD HEIGHTmin. 50 mm / max. unlimited
WIDTHmin. 400 mm / unlimited
LENGTHmin. 450 mm / max. unlimited
LIFTmin. 5 mm / max. unlimited
CAPACITYmin. 50 kg / max. unlimited
AIR PRESSUREmin. 1 bar / max. 4 bar

Roll Transporter Features

  • High reliability
  • No harmful exhaust gasses, just regular air
  • Low investment compared to other transportation methods
  • Heavy objects can be operated by one single person
  • Low floor pressure
  • Plug and play
  • Compact build, often smaller than the object itself
  • Complete freedom of movement and accurate ositioning to the millimetre
  • Customisation possible to fully meet the client’s requirements

Typical Applications

  • Feed new paper rolls into a printing machine
  • Move vehicles on their tyres through a production facility
  • Move to the production site and unwind cable reels
  • Move and wind cable reels after production
  • Move steel coils form production to the storage facility



Aerofilm Systems Air Caster Transportation Systems Product Catalogue

You can download the complete Aerofilm Systems Air Caster Transportation Systems product Catalogue here: Aerofilm Systems Air Caster Transportation Systems Catalogue Aerofilm Systems Air Caster Transportation Systems Catalogue (2600 KB)

More Information?

If you require more information or have any questions regarding Aerofilm Systems products or any of the Air Caster Roll Transporters for sale, please feel free to  call us on (+61 3) 9553 4882 or 0412 720 638, send us an email at peter@pjmindustrial.com.au or use our Contact Form to submit an enquiry.

Australian Agent for Aerofilm Systems

PJM Industrial have been appointed the Australian Agent for Aerofilm Systems as of 2017.
