HYDRAULIC Square Drive Torque Wrenches For Sale Australia
PJM Industrial’s Square Drive Hydraulic Torque Wrenches are light weight and built to last from Aluminium – Titanium Alloy and a super high strength alloy steel for increased strength, intensity and durability.
All of the PJM Industrial Hydraulic Square Drive Torque Wrench Models have a high repeatability and accuracy to -/+ 3% with a Max. working pressure of 700 bar. They are also fitted with 360 degree x 180 degree hose uni-swivel which allows easy fit in confined areas, and eliminates hose kinking. An Anti-reverse pawl designed for preventing ratchet return to maintain required torque.
They are unbeaten for durability, and unequaled for accuracy.
OEM offered, customised design.
Square Drive Hydraulic Torque Wrench Specifications
| MODEL | PHM02 | PHM05 | PHM08 | PHM10 | PHM16 | PHM20 | PHM28 | PHM36 | PHM50 | PHM70 |
|---|---|---|---|---|---|---|---|---|---|---|
| Torque (Nm) Max | 1,712 | 4,332 | 7,420 | 10,430 | 15,330 | 20,118 | 26,392 | 35,350 | 48,740 | 70,680 |
| Torque (Nm) Min | 171 | 434 | 742 | 1,015 | 1,533 | 2,011 | 2,639 | 3,535 | 4,874 | 7,066 |
| Square drive (mm) | 3/4" | 1" | 1.5" | 1.5" | 1.5" | 2.5" | 2.5" | 2.5" | 2.5" | 2.5" |
| Weight (kg) | 2 | 4 | 7 | 10.6 | 12.9 | 20 | 25 | 33.8 | 43 | 52 |
Squuare Drive hydraulic Torque Wrench Features
The material of PJM Hydraulic Torque Wrenches are Aluminium-Titanium alloy and super high strength alloy steel for increased strength, intensity and durability of the tool. High repeatability with accuracy +/- 3%. Maximum working pressure is 70MPA.
The 360 x 180 degree hose uni-swivel allows easy fit in confined areas and eliminates hose kinking.
Anti-reverse pawl designed for preventing ratchet return to maintain requred torque.
For more information select the following PDF:
PJM Industrial Square Drive Torque Wrench Product PDF (164 KB).

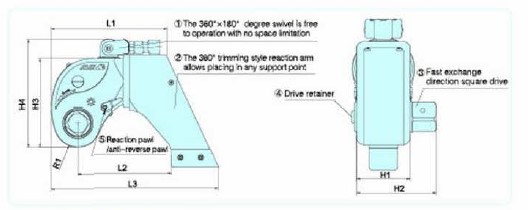

The dimensions by model are also listed in the Product PDF above.
Hydraulic Square Drive Torque Wrench Sockets
We can also supply Square Drive Hydraulic Torque Wrench Sockets, sizes 3/4″, 1″, 1-1/2″ & 2-1/2″. They are made from high strength alloy steel material according to DIN Standard 3121 & 3129. Lifetime guaranteed.
For more information select the following PDF: PJM Industrial Square Drive Hydraulic Torque Wrench Sockets Product PDF (101 KB)
Vanguard® Hydraulic Torque Wrench Pumps
PJM Industrial TWP55 Torque Wrench Pumps Product PDF (120 KB) Bolt Size Chart & Bolt and Nut Pretightening Force Recommended Chart
To assist you, we also have provided a PDF which has a Bolt Size Chart and Bolt and Nut Pretightening Force Recommended Chart.
To download, please select the following PDF: PJM Industrial Hydraulic Torque Wrench Bolt Size Chart PDF (303 KB)
More Information? Prices? Quotes?
PJM Industrial are specialist suppliers of torque wrenches throughout Australia. If you require prices, a quote or have any questions regarding our PJM Industrial Square Drive Hydraulic Torque Wrenches for sale, or have any questions regarding any of our products, please feel free to call us on (+61 3) 9553 5944 or 0412 720 638, send us an email at peter@pjmindustrial.com.au or use our Contact Form to submit an inquiry.
