Double Speed High Flow Hydraulic Hand Pumps For Sale: Werner Weitner WW-WH

Double Speed High Flow Hydraulic Hand Pumps

Double Speed Hydraulic High Flow Hand Pump Features

  • Double speed operation
  • Pump head and tank made of aluminium
  • Compact and lightweight ergonomic design
  • Internal pressure relief valve up to 700 bar max.
  • 0-1000 Bar gauge Ǿ63 as standard available

These hydraulic hand pumps are adjusted on 700 bar, oil filled and ready to use.

Other pressure and tank sizes are available on request.

Werner Weitner Double Speed High Flow Hydraulic Hand Pumps For Sale

Werner Weitner Double Speed High Flow Hydraulic Hand Pumps Specifications

Single speed hand pumps

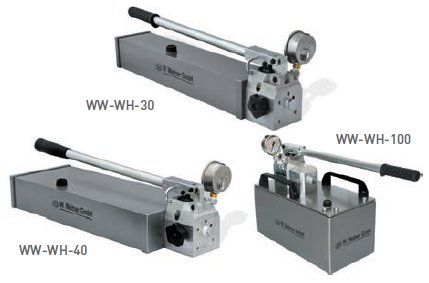

WW-WH-30
WW-WH-40
WW-WH-100
Reservoir Capacity
2.5 Litres
4.8 Litres
12 Litres
Usable Oil Capacity
1.8 Litres
3.8 Litres
10 Litres
Oil Displacement per Stroke (Low pressure)
40 cm3
40 cm3
40 cm3
Oil Displacement per Stroke (High pressure)
3.1 cm3
3.1 cm3
3.1 cm3
Max. Handle Effort at 700 bar
41 kg
41 kg
41 kg
Piston Stroke
27 mm
27 mm
27 mm
Pressure Rating (bar)
40 / 700
40 / 700
40 / 700
Connection Thread
3/8″
3/8″
3/8″
Weight
8 kg
11 kg
22 kg
Sizes (LxWxH)
588 x 106 x 171 mm
588 x 186 x 171 mm
608 x 200 x 355 mm

For more information please select the following Product PDF:

Werner Weitner Double Speed Hand Pumps with high Flow Werner Weitner Double Speed Hand Pumps with high Flow (106 KB)
